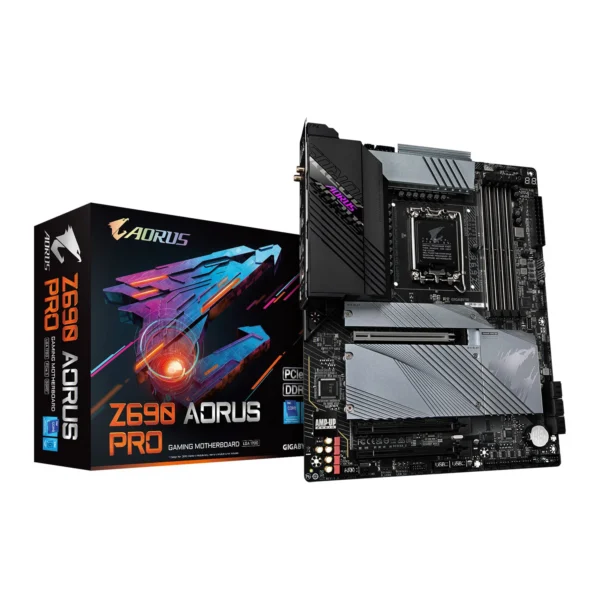

The Apex of Gaming Engineering: Gigabyte Z690 AORUS PRO WiFi DDR5 Guide
When you decide to build a truly uncompromising, high-end desktop PC, you want hardware that focuses entirely on raw gaming performance and elite thermals.
Enthusiasts who demand the absolute highest frame rates and exceptional overclocking potential require a specialized, highly engineered foundation.
For years, the AORUS gaming division has represented the perfect balance of flagship electrical performance and aggressive, tactical aesthetics.
The Gigabyte Z690 AORUS PRO WiFi DDR5 carries this legendary bloodline forward by completely redefining what a modern ATX gaming motherboard can achieve.
It strips away all thermal limitations, providing a completely overbuilt power delivery system and the most advanced cooling array on the market.
In this comprehensive, deep-dive hardware guide, we will explore the breathtaking mechanical and digital engineering behind this premium motherboard.
You will discover exactly why the Gigabyte Z690 AORUS PRO WiFi DDR5 is the ultimate, uncompromising upgrade for your next custom build.
The LGA 1700 Socket and Z690 Chipset
At the very heart of this elite motherboard is the highly advanced Intel LGA 1700 processor socket.
This socket is specifically engineered to support the massive physical footprint and complex architecture of Intel’s revolutionary hybrid processors.
It flawlessly manages the high-speed data flow between the processor’s high-performance P-cores and energy-efficient E-cores.
To ensure this brilliant hybrid architecture operates without a single bottleneck, the Gigabyte Z690 AORUS PRO WiFi DDR5 utilizes the flagship Z690 chipset.
This advanced enterprise-grade chipset drastically widens the DMI data pipeline connecting your CPU to your massive storage drives and external peripherals.
By building your rig around the Gigabyte Z690 AORUS PRO WiFi DDR5, you guarantee that your system has the raw bandwidth necessary for extreme 4K gaming.
Monstrous 16+1+2 Direct Power Phases
Modern multicore processors are incredibly powerful, but they require a massive, unwavering supply of clean electricity to function at peak frequencies.
To keep high-end silicon perfectly fed during extreme overclocking, the Gigabyte Z690 AORUS PRO WiFi DDR5 features an astonishing 16+1+2 direct digital VRM design.
This direct architecture delivers immediate, ultra-low-latency power directly to the processor without relying on inefficient doublers.
It utilizes premium 90A Smart Power Stages, delivering the exact thermal efficiency and massive current that modern, high-core-count processors absolutely demand.
The electrical power is securely delivered via solid-pin power connectors, ensuring flush, secure contact with your premium power supply cables.
This elite VRM design ensures the Gigabyte Z690 AORUS PRO WiFi DDR5 remains entirely stable, even when pushing aggressive manual overclocks.
Fins-Array II VRM Cooling Ecosystem
Unthrottled processor performance requires exceptional, highly engineered cooling hardware across the entire motherboard surface.
If your motherboard’s voltage regulators overheat during a gaming marathon, your processor will aggressively throttle down to prevent physical thermal damage.
To combat this, the Gigabyte Z690 AORUS PRO WiFi DDR5 features the legendary, massive Fins-Array II VRM heatsink design.
These massive metal blocks utilize stacked louvered fins to provide an absolutely enormous amount of surface area for rapid heat dissipation.
Gigabyte also utilizes a direct-touch heatpipe and premium thermal pads to ensure rapid heat transfer away from the 90A power stages.
Because of this incredible cooling ecosystem, the Gigabyte Z690 AORUS PRO WiFi DDR5 sustains maximum CPU boost frequencies indefinitely.
The DDR5 Memory Revolution
The most significant technological leap featured on this specific motherboard is its native support for revolutionary DDR5 system memory.
DDR5 completely rewrites the rules of system memory architecture, introducing massive improvements in base frequency, density, and total data bandwidth.
The Gigabyte Z690 AORUS PRO WiFi DDR5 is meticulously engineered to push these new memory modules to their absolute physical silicon limits.
It utilizes advanced Surface Mount Device (SMD) memory routing, which drastically reduces electrical interference compared to traditional DIP designs.
This fully isolated memory circuitry allows the Gigabyte Z690 AORUS PRO WiFi DDR5 to achieve staggering memory speeds of 6200MHz and beyond.
Embracing SMD PCIe 5.0 Architecture
When you invest in flagship hardware, you are clearly building a system designed to dominate the gaming landscape for many years to come.
To ensure your graphical capabilities match your memory longevity, the Gigabyte Z690 AORUS PRO WiFi DDR5 features a fully reinforced PCIe 5.0 x16 slot.
PCIe 5.0 technology is a monumental leap in data transfer speeds, providing a staggering 128 GB/s of bidirectional bandwidth.
Just like the memory slots, Gigabyte utilizes a specialized SMD PCIe 5.0 armor design to maximize signal integrity and support heavy graphics cards.
By investing in the Gigabyte Z690 AORUS PRO WiFi DDR5, your gaming rig is completely future-proofed for the next generation of flagship GPUs.
You can read more about the incredible technical specifications of this architecture on the <a href=”https://www.intel.com/content/www/us/en/products/docs/chipsets/desktop-chipsets/z690-chipset-brief.html” target=”_blank” rel=”noopener”>official Intel Z690 chipset documentation page</a>.
Massive Storage: Four Onboard M.2 NVMe Slots
Modern AAA video games and massive 4K video projects require vast amounts of ultra-fast NVMe solid-state storage space.
The Gigabyte Z690 AORUS PRO WiFi DDR5 completely solves your storage limitations by providing an unbelievable four onboard M.2 NVMe slots.
These slots operate at blazing-fast PCIe 4.0 speeds, completely obliterating game loading screens and massive file transfer times.
This massive storage density is incredibly rare and allows you to completely eliminate messy SATA cables from your build entirely.
To keep your primary drives icy cold, the Gigabyte Z690 AORUS PRO WiFi DDR5 includes massive, fully enlarged Thermal Guards.
This heavy aluminum shielding prevents high-speed NVMe drives from thermal throttling, ensuring highly consistent read and write performance.
Next-Generation Wi-Fi 6 Wireless
A flawless, high-speed network connection is an absolute requirement for competitive multiplayer gaming and heavy Twitch broadcasting.
The Gigabyte Z690 AORUS PRO WiFi DDR5 is armed with a highly advanced, integrated Intel Wi-Fi 6 (802.11ax) wireless module.
This next-generation wireless standard dramatically increases network capacity and reduces electronic interference in crowded home environments.
It ensures a highly stable, ultra-low-latency connection even when your workstation is located far away from your physical home router.
Furthermore, the Gigabyte Z690 AORUS PRO WiFi DDR5 includes Bluetooth capabilities for flawless connectivity with wireless gaming headsets and controllers.
Intel 2.5G Ethernet LAN
If you prefer the ironclad, unwavering stability of a hardwired connection for competitive esports, this motherboard provides elite throughput.
The Gigabyte Z690 AORUS PRO WiFi DDR5 features an upgraded Intel 2.5 Gb Ethernet port located directly on the rear I/O shield.
This advanced LAN connection provides up to a 2.5X improvement over standard gigabit network connections.
This results in incredibly fast game patch downloads, rapid local network file transfers, and flawlessly smooth high-resolution streaming.
When you connect your gaming router to the Gigabyte Z690 AORUS PRO WiFi DDR5, you are guaranteed the absolute lowest ping possible.
AMP-UP Audio with ALC4080
Pristine audio quality is a critical aspect of modern gaming immersion and competitive tactical awareness in first-person shooters.
The Gigabyte Z690 AORUS PRO WiFi DDR5 boasts industry-leading, studio-grade audio powered by the high-end ALC4080 audio codec.
It utilizes premium WIMA audio capacitors and a dedicated audio noise guard to separate sensitive analog components from digital interference.
This audiophile-grade combination delivers an incredible signal-to-noise ratio and ultra-low distortion for your premium studio headphones.
This guarantees a warm, natural, and incredibly precise 3D sound signature directly from the Gigabyte Z690 AORUS PRO WiFi DDR5.
Aesthetic Brilliance: RGB Fusion 2.0
The visual appeal of the AORUS series has set a completely new industry standard for elegant, tactical PC aesthetics.
The Gigabyte Z690 AORUS PRO WiFi DDR5 features a sophisticated black PCB enveloped in sleek, gunmetal grey aluminum armor.
It perfectly integrates vibrant, customizable lighting via RGB Fusion 2.0 on the I/O cover, allowing for deep color synchronization.
For users who want a breathtaking, highly unique visual design that highlights their gaming hardware, the Gigabyte Z690 AORUS PRO WiFi DDR5 is absolute perfection.
DIY Friendly Innovation: Server-Grade PCB
The physical foundation of a motherboard heavily dictates how reliably it can sustain high frequencies and manage heat.
Beneath the sleek heatsinks, the Gigabyte Z690 AORUS PRO WiFi DDR5 utilizes a highly advanced, server-grade 6-layer PCB.
This premium printed circuit board features 2oz thickened copper layers to heavily enhance electrical conductivity and stability.
These extra copper layers act as massive, passive heatsinks, lowering the overall ambient temperature of the motherboard significantly.
This pristine signal integrity is exactly why the Gigabyte Z690 AORUS PRO WiFi DDR5 is so highly regarded by extreme benchmarkers.
Advanced Hardware Tools: Q-Flash Plus
Upgrading hardware components or pushing aggressive overclocks can sometimes require immediate BIOS updates before the system will boot.
Gigabyte has included essential hardware flashing tools directly on the motherboard to make troubleshooting incredibly straightforward.
The Gigabyte Z690 AORUS PRO WiFi DDR5 features the brilliantly convenient Q-Flash Plus button on the rear panel.
This allows you to safely update the motherboard’s firmware using just a USB flash drive, completely without needing a CPU or RAM installed.
Smart Fan 6 Cooling Control
Maintaining a quiet, cool system requires intelligent, granular control over your case fans and liquid cooling pumps.
The Gigabyte Z690 AORUS PRO WiFi DDR5 features comprehensive cooling controls powered by the highly advanced Smart Fan 6 utility.
Multiple onboard temperature sensors allow you to tie your chassis fans directly to your GPU or CPU temperatures dynamically.
This ensures your system reacts instantly to the specific cooling demands of your current workload to maintain optimal thermals.
Your fans will spin down to a whisper during light web browsing, and ramp up aggressively when you launch a heavy application on the Gigabyte Z690 AORUS PRO WiFi DDR5.
Extensive Rear I/O Connectivity
A high-end battle station requires an absolute armada of connected USB peripherals, microphones, and streaming devices.
From 4K webcams and USB microphones to external capture cards and stream decks, you need massive USB expandability.
The rear I/O panel of the Gigabyte Z690 AORUS PRO WiFi DDR5 is fully loaded to accommodate the most complex gaming setups.
The crown jewel of the rear panel is the blazing-fast SuperSpeed USB 3.2 Gen 2×2 Type-C port, delivering mind-bending speeds of up to 20 Gbps.
In total, the Gigabyte Z690 AORUS PRO WiFi DDR5 provides a staggering thirteen rear USB ports, ensuring you never run out of connections.
Who is the Gigabyte Z690 AORUS PRO WiFi DDR5 Built For?
This elite, flagship-tier motherboard is meticulously crafted for a highly specific breed of uncompromising PC enthusiast.
It perfectly balances next-generation DDR5 performance, a breathtaking tactical aesthetic, and heavily overbuilt electrical reliability.
-
The Hardcore Overclocker: The direct 16+1+2 power phases and Fins-Array II cooling provide the ultimate foundation for extreme CPU voltage tuning.
-
The High-End Gamer: With PCIe 5.0 graphics support, your rig is perfectly primed for the next decade of gaming innovations.
-
The Storage Hoarder: With four onboard M.2 slots, you have virtually limitless options for ultra-fast solid-state storage arrays.
-
The Smart Enthusiast: Enjoy true premium features and heavy aluminum armor without paying the massive “ultra-flagship” price premium.
Final Verdict on the Ultimate AORUS Motherboard
Building a custom PC is a significant financial investment, and your motherboard dictates the stability of the entire system.
When you demand absolute visual perfection and top-tier performance, settling for mid-range hardware is simply a compromise you cannot make.
The Gigabyte Z690 AORUS PRO WiFi DDR5 delivers rock-solid direct power, exceptional thermal management, and blazing-fast PCIe 5.0 bandwidth.
By flawlessly implementing four M.2 slots, SMD DDR5 routing, and an undeniably gorgeous AORUS aesthetic, Gigabyte has created an undisputed masterpiece.
If you are preparing to build a completely uncompromising, highly dependable elite gaming workstation, the Gigabyte Z690 AORUS PRO WiFi DDR5 is the foundation you need.
